商品の詳細:
|
機能: | 詰め込み,包装,ラベル付け,密封,エムボス,粘着 | パッケージの種類: | スタンドポーチ、バッグ、フィルム、ポーチ |
---|---|---|---|
包装材料: | プラスチック,PET/PE (ポリエステル層ポリエチレン) OPP/CPP (オリエンテッドポリエチレン層鋳型ポリエチレン) OPP/CE (オリエンテッドポリエチレン層セルロース) | 電圧: | 110V / 220V / 380V 50-60Hz |
生産能力: | 30-100bags/Min | 体重 (kg): | 350 |
適用する: | 食品,商品,医療,化学,機械・ハードウェア,着物,繊維 | オートマティックグレード: | オートマティック |
保証: | 1年 | 駆動型: | パネム |
サイズ (L*W*H): | 900 (L) *680 (W) *1960 (H) mm | 主要 な 売り物: | 高い 生産性 |
ハイライト: | 500g Vertical Packing Machine,200g Vertical Packing Machine,100g vertical pouch packing machine |

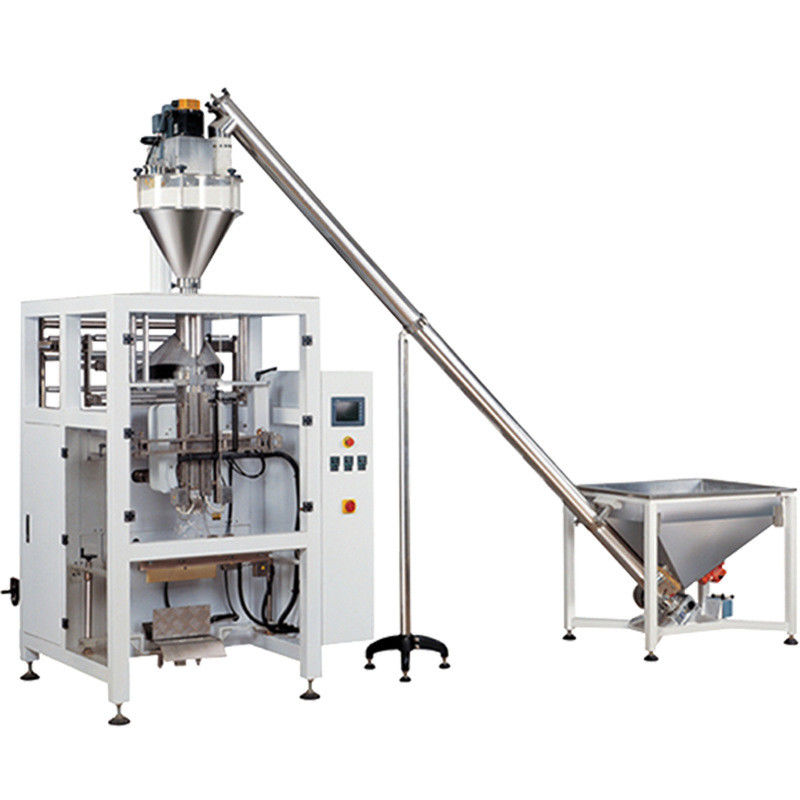

Automatic 100g 200g 500g Masala Powder Spice Powder Sachet Grains Pouch Packing Machine Multi-Function Packaging Machines
Fully automatic powder packaging machine
Encounter different packaging speeds
Dust-proof, corrosion-resistant, good sealing
Buying our machines is worry-free
What are your powder raw materials?
Applicable to packaging additives, flour, raw powder, milk powder, glucose powder, pepper powder, fish feed powder, condiments, disinfectant powder and other powders with high precision requirements
Fully automatic powder packaging machine is an efficient and intelligent packaging equipment, mainly used for automatic metering, filling and sealing of powdered materials, widely used in food, medicine, chemical industry, agriculture and other industries.
Working principle
Automatic feeding: The powder material is conveyed to the metering device by a screw conveyor or a vibrating feeder.
Precise metering: Screw metering, volumetric metering or weighing metering are used to ensure that the weight error of each bag is small (usually within ±1%).
Filling and sealing: The material is automatically filled into the packaging film, and the sealing is completed by heat sealing or ultrasonic sealing technology, supporting a variety of bag types such as three-side sealing, four-side sealing, and back sealing.
Intelligent control: PLC control system with touch screen operation, can preset parameters (such as packaging weight, speed, bag length, etc.) and monitor production status in real time.
No
|
Item
|
Data
|
1
|
Packing speed
|
60-100 (bags/min)
|
2
|
Packing product size
|
(L)50-200mm (W)50-140mm
|
3
|
Roll Film Width:
|
≤300mm
|
4
|
roll film dimension
|
Φ450mm
|
5
|
Voltage:
|
220V 50/60Hz
|
6
|
Total power
|
1.8kw
|
7
|
Gross weight
|
300kg
|
8
|
Outside dimensions
|
1260*930*1700mm
|
